Yanmar 3GM Series Marine Diesel Engines

There are five main model variants of the Yanmar 3GM in circulation. The original 3GM engines were produced from 1980 to 1983 but were then upgraded to the 3GM30 engines for 1983 to 2005 when production ceased. The “F” indicates indirect cooling. The difference between the 3GM / 3GMF / 3GMD (20hp) and the 3GM30 / 3GM30F (24hp) is in the displacement and operating rpm of the engine, as well as the alternator output. See the table below for exact specs.

Model3GM /
3GMF /
3GMD
3GM30 /
3GM30F
Years of Production1980 - 19831983 - 2005
Idle (no-load) speed (rpm)850850
Full load speed (rpm)37503825
Fuel Injection Timing28° before TDC18° before TDC
Valve Clearance0.2 m (0.008 in.)0.2 m (0.008 in.)
Oil Capacity2.6 litres / 2.8 qt2.6 litres / 2.8 qt
Num of Cylinders33
Displacement879 cc / 53.6 cu. in.954 cc / 58.2 cu. in.
Horsepower20 hp @ 3400 rpm24 hp @ 3400 rpm
GearboxKBW10D
KM3A (GM3D)
KM3A or KM3P
Gearbox Ratio2.14, 2.63 or 2.83
(2.36, 2.61 or 3.20
for KM3A)
2.36, 2.61 or 3.20

How is it cooled?

Is your engine raw-water or fresh-water cooled? Note that the raw-water cooled engines have no heat exchanger – the large unit on the top with “YANMAR” embossed on it.

3GM “Direct” Cooled Variants
3GM “Fresh Water” cooled variants

Do you have a Japanese or a European Engine?

The Yanmar 3GM30 engine was available in two main variants. One was manufactured in Japan and is known as the 3GM30 and the other was partly assembled in Europe, in the Netherlands from the mid-80s, and is known as the 3GM30-YEU. The YEU variant has an “E” at the beginning of the serial number although notice that the label still has “made in Japan” at the base (both shown in the image). The YEU varient is identical to the Japanese engines in most ways but the raw water pump is an area where the two engines differ. So if you are changing the impeller, be sure to pick the correct guide for your engine.

Yanmar GM YEU variant

Components of the 3GM Engines

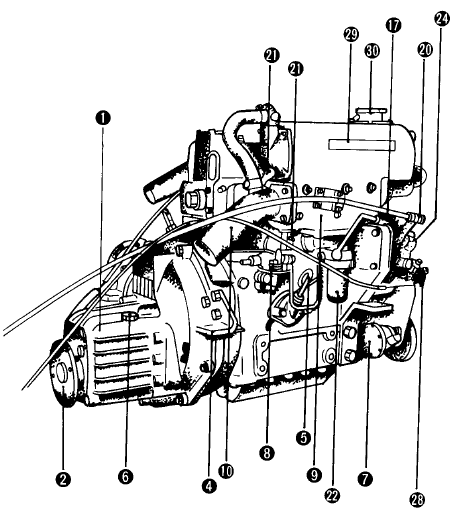

Yanmar 3GM starboard side

1 Reduction and reversing gear
2 Output shaft coupling
4 Installation foot
5 Engine lube oil dipstick
7 Cooling water pump
8 Fuel feed pump
9 Exhaust manifold
10 Mixing elbow
17 Fuel injection pump.
20 Speed control lever
21 Cooling water drain cock
(Cylinder block/Exhaust manifoid)
22 Fuel filter
24 Fuel injection limiter
28 Engine stop device
29 Fresh water tank
30 Pressure cap

Yanmar 3GM port side

3 Clutch control lever
11 Air intake silencer
12 Alternator
13 Lube oil filter
14 Starter motor
15 Decompression lever:
18 Fuel injection valve
19 Crankshaft V-pulley
21 Cooling water drain cock
(Cylinder block/Exhaust manifoid)
23 Breather pipe
25 Engine lift plate
26 Lube oil supply port
27 Oil pressure sender
31 Cooling water (fresh water) pump

TOP TIP: Use this handy printout to record all the important details about your Yanmar engine and then file it away safely at home for future reference.

Upgrade jobs for your Yanmar 3GM

Maintenance jobs for your Yanmar 3GM

  • Changing the primary fuel filter on your marine diesel installation
  • Checking the starter motor drive belt on your Yanmar 3GM30
  • Removal and inspection of the air filter on the 3GM30
  • Removal and inspection of the exhaust mixing elbow on the 3GM30
  • Descaling the raw water coolant channels in your 3GM (Raw water cooled engines only)
  • Descaling the heat exchanger in your 3GM (Fresh water cooled engines only)

Winterising jobs for your Yanmar 3GM

Before haul-out:

  • Yanmar 3GM30 engine oil and filter change

After haul-out:

  • Flushing salt-water from the Yanmar 3GM30 and introducing anti-freeze
  • Clean and winterise the raw-water filter

Before launch:

  • Stern gear: Grease your lip seal or refill the greaser on your stuffing box
  • Changing the Secondary Fuel filter on the Yanmar 3GM30
  • Inspecting the anodes on your Yanmar 3GM30 (Raw water cooled engines only)
  • Removing and testing the thermostat on your Yanmar 3GM (read more on thermostats)
  • Removing and inspecting the air intake filter/silencer on the Yanmar 3GM

After launch:

Video: Click to watch a short video of the Yanmar 3GM30 running
