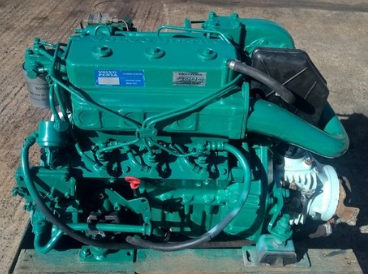

Volvo Penta 2003T
The Volvo Penta 2000 series of Marine Diesel engines were introduced in 1983, with the last engines produced in 1993. The Volvo Penta 2003T marine diesel engine had a cylinder displacement of 1280cc and delivered an impressive 43 hp, thanks to its turbo unit.
The 2000-Series was a complete engine programme from Volvo Penta, which had been specially developed for powering sailboats and small motor boats. In addition, there was a comprehensive accessories programme for the 2000-Series for other requirements, such as, heating, cooling, electricity etc. Directly injected, they were easily started and fuel-efficient marine diesels. Also, a large flywheel, decompression and cold-start facility which made cold starts easier. A 12-volt two terminal marine electrical system and AC alternator of 50A assured excellent charging and the engine was carried in vibration-damping rubber mounts providing a low noise level for the time.
How heavy is the Volvo Penta 2003T?
The different models of the Volvo Penta 2003T weighed between 176 kg (388 lbs) and 190 kg (419 lbs). The standard 2003T weighed 176 kg (388 lbs). The 2003T-V (with the additional reverse gear weighed 182 kg (401 lbs) and the 2003T-S complete with sail drive leg weighed 190 kg (419 lbs).
Specifications of the Volvo Penta 2003T
| Volvo Penta 2003T | |
|---|---|
| Number of Cylinders | 3 |
| Idle (no-load) speed (rpm) | 850 |
| Full load speed (rpm) | 3200 |
| Cylinder Diameter (mm) | 79 |
| Stroke (mm) | 87 |
| Displacement | 1280 cc |
| Power Output (hp) | 43 hp |
Dimensions of the Volvo Penta 2003T
Video: Click to watch a short video of a Volvo Penta 2003T running
Some problems are common between lots of diesel engines – see our checklist of the most common faults. If you’re seeing smoke from your exhaust, read this. But every variant of engine has its own idiosyncratic “personality” so we’ve gathered together a list of the common faults for the 2003T.
- If you own a 2003T you must examine the oil cooler carefully and regularly for corrosion. It’s hidden under the heat exchanger. Secondly, also check for corrosion of the external steel high pressure oil pipe which feeds the turbocharger. A leak from either of these can dump the entire contents of the sump into the bilge and the first you’ll know is when the engine suddenly stops.
A smart skipper learns from the lessons of others.
